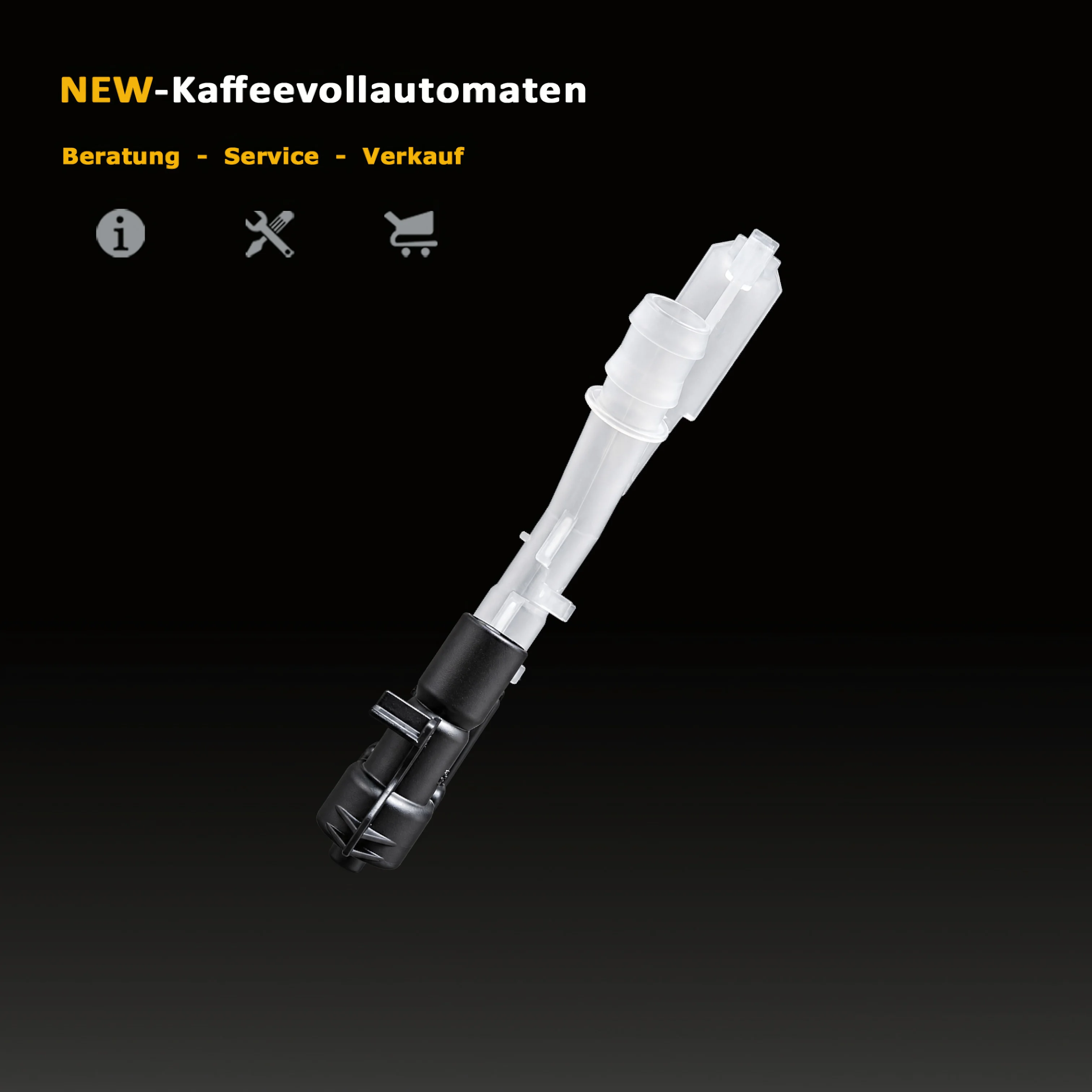

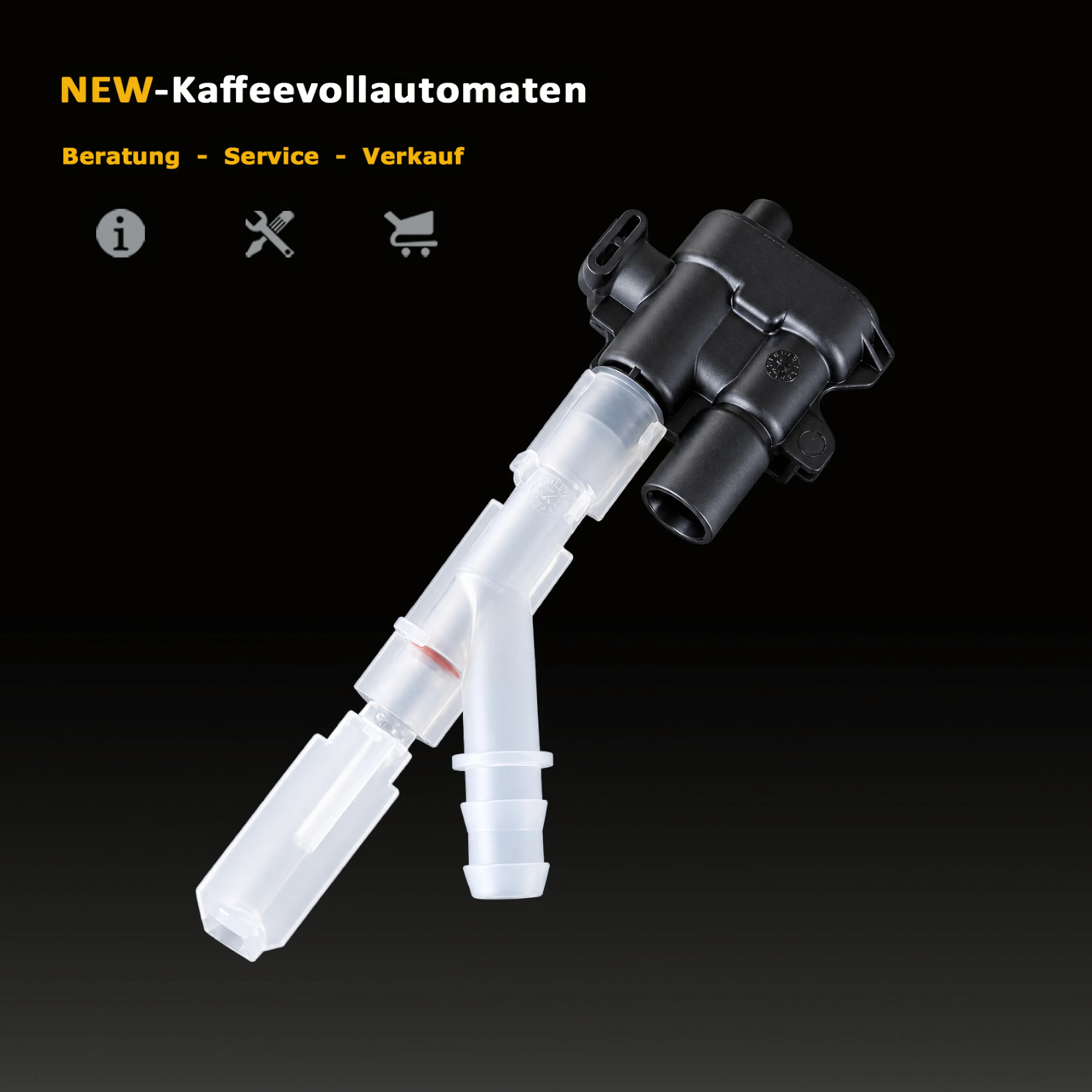

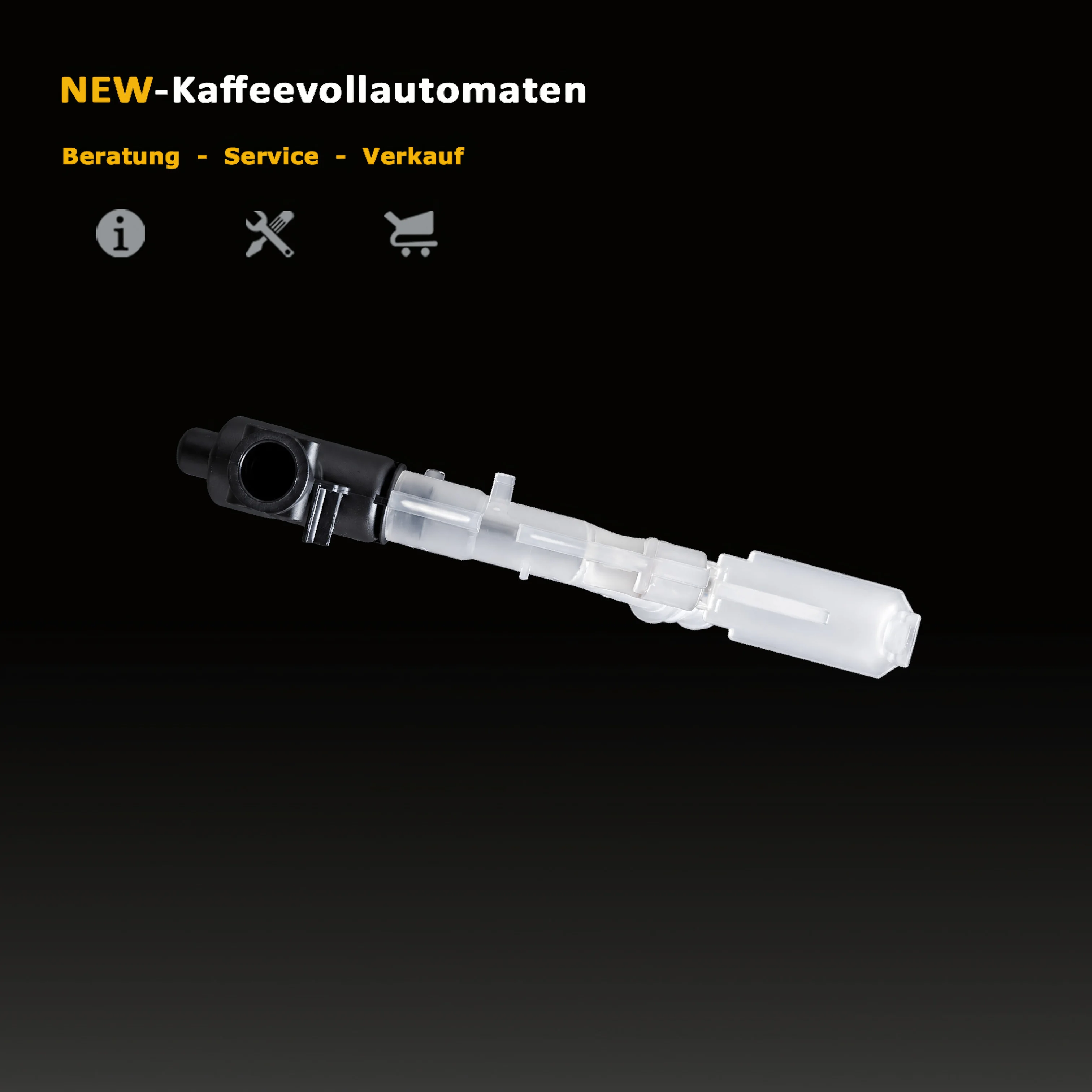

Drainage valve for Nivona coffee machines
This drainage valve for Nivona coffee machines is located in the drive unit area and is an important component of the water and brewing system. The valve controls the drainage of water and ensures that the corresponding water flows inside the coffee machine are discharged in a controlled manner.
A worn or defective Nivona drainage valve may become noticeable, among other things, by an unusually large amount of water collecting in the drip tray. If water flows directly or in larger quantities into the drip tray during the rinsing cycle or while coffee is being prepared, the drainage valve may be a possible cause.
The lower part of the valve is movable. During installation, particular attention must therefore be paid to the correct alignment and positioning on the drive unit.
Installation note:
The raised guide on the movable lower part of the drainage valve must face towards the drive unit during installation. At the same time, ensure that the three retaining tabs on the upper part of the valve engage correctly and completely with the drive unit.
Product features:

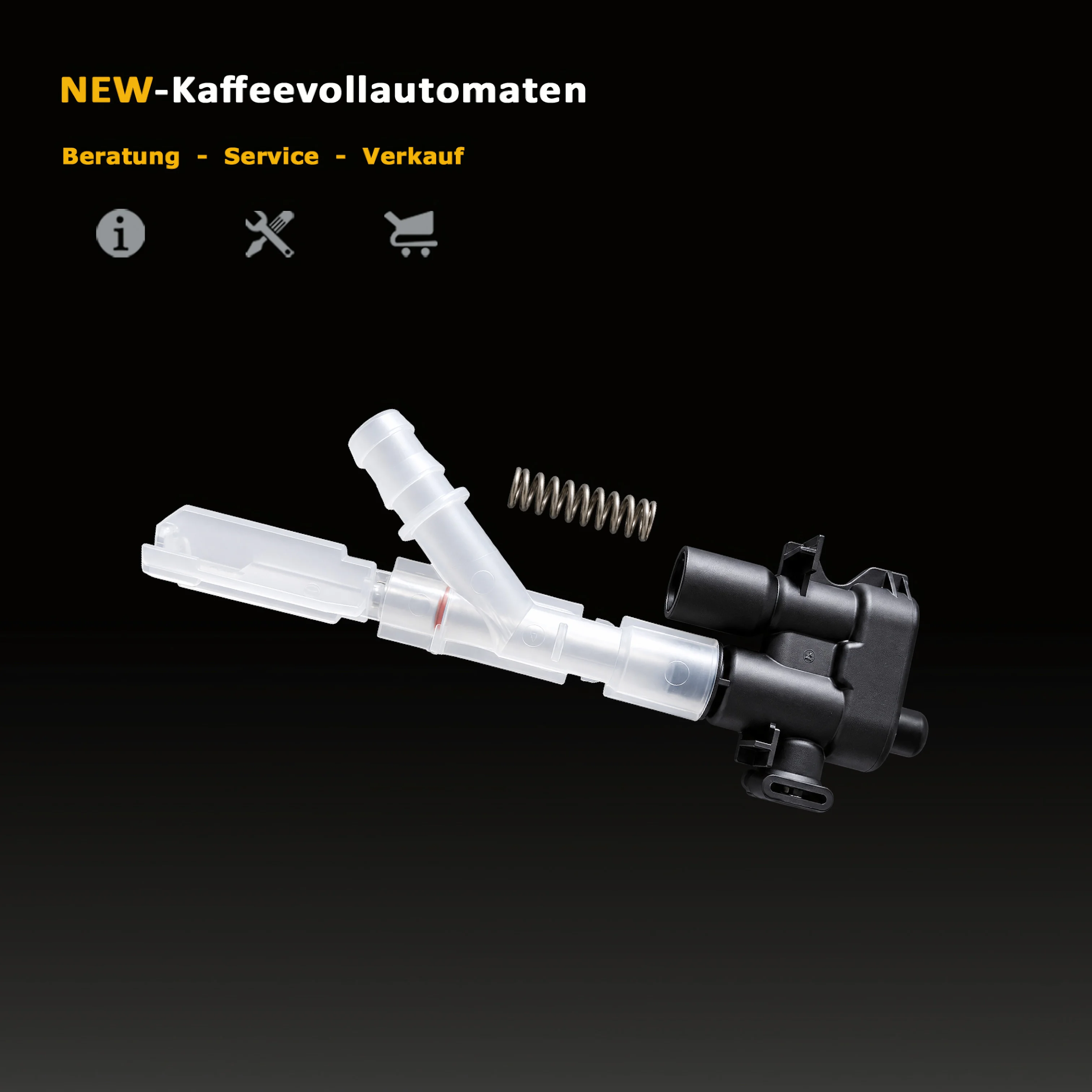

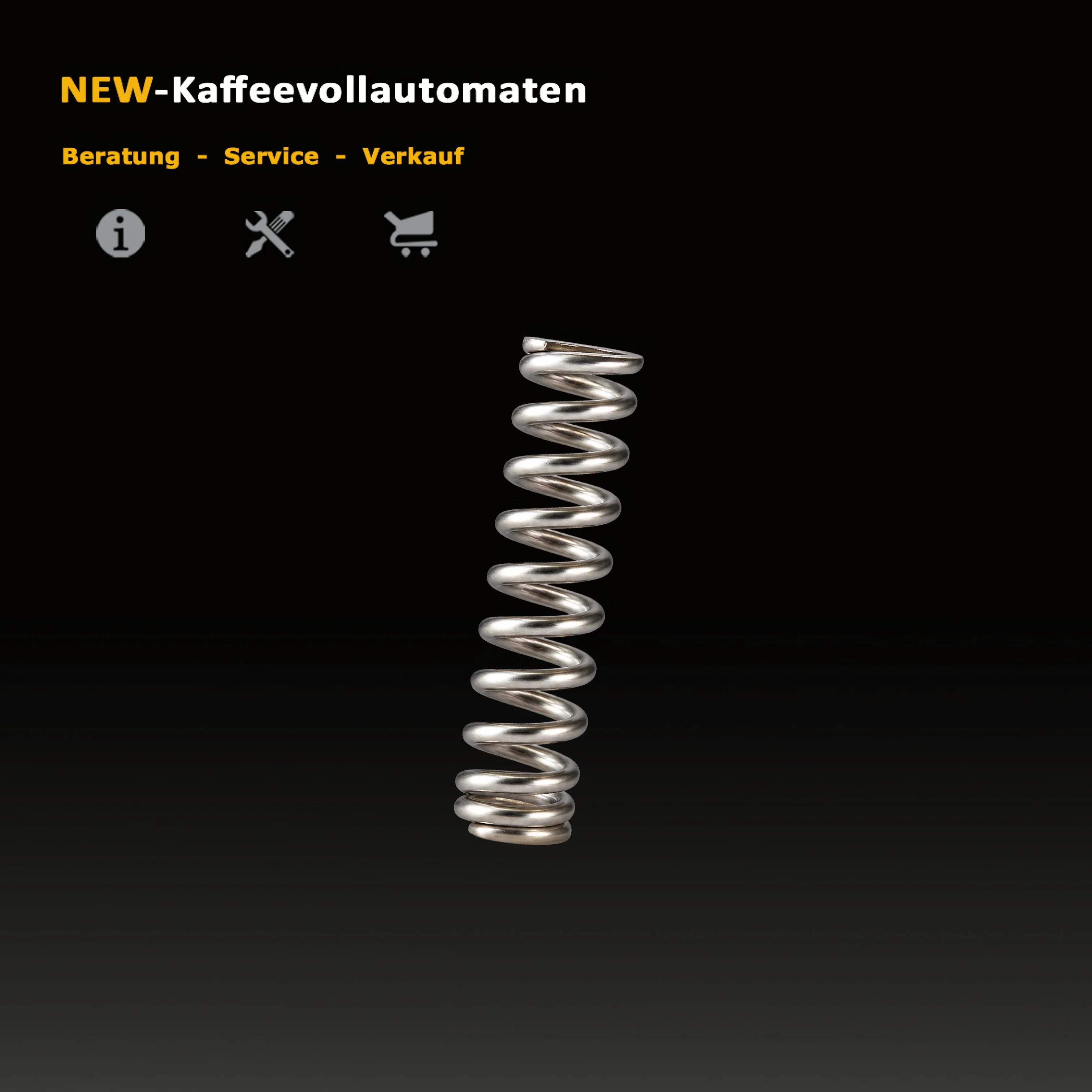

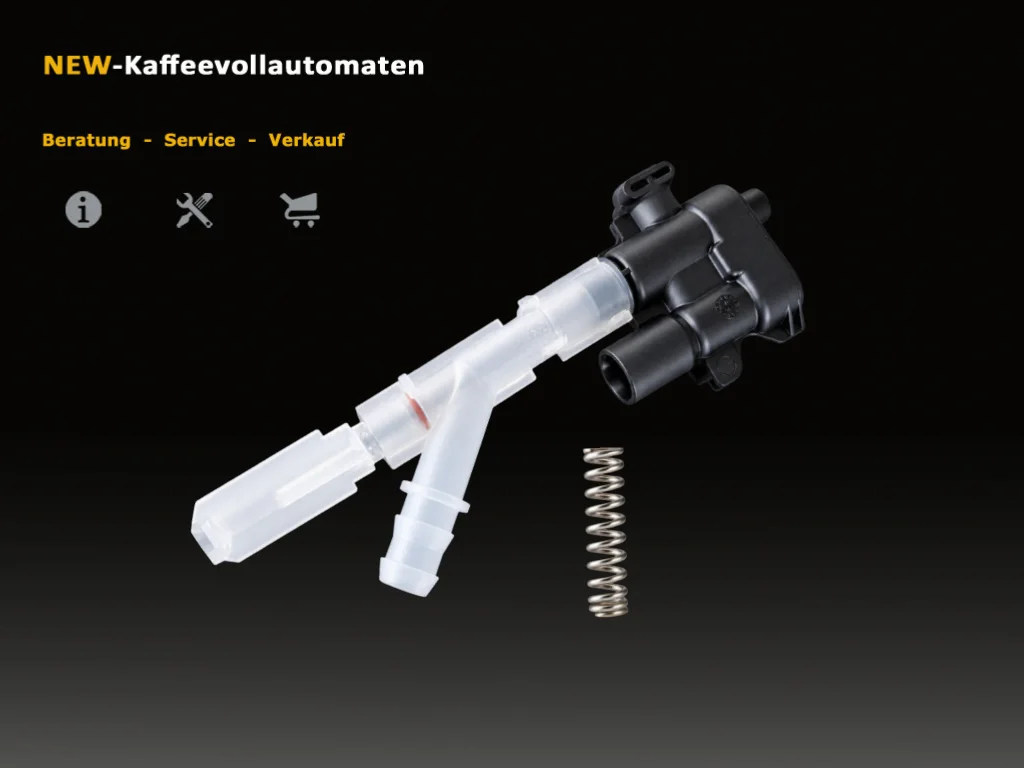

Complete drainage valve with spring for Nivona coffee machines, improved version with movable lower section, installed directly on the drive unit and suitable for replacing a worn, damaged or leaking drainage valve.
Compatible with the following Nivona coffee machines
NICR 520 - Typ 571 CafeRomatica, NICR 530 - Typ 571 CafeRomatica, NICR 626 - Typ 571 CafeRomatica, NICR 646 - Typ 572 CafeRomatica, NICR 656 - Typ 572 CafeRomatica, NICR 660 - Typ 697 CafeRomatica, NICR 670 - Typ 697 CafeRomatica, NICR 680 - Typ 697 CafeRomatica, NICR 757 - Typ 507 CafeRomatica, NICR 758 - Typ 573 CafeRomatica, NICR 759 - Typ 573 CafeRomatica, NICR 760 - Typ 508 CafeRomatica, NICR 767 - Typ 508 CafeRomatica, NICR 768 - Typ 573 CafeRomatica, NICR 769 - Typ 573 CafeRomatica, NICR 777 - Typ 506 CafeRomatica, NICR 778 - Typ 573 CafeRomatica, NICR 779 - Typ 573 CafeRomatica, NICR 788 - Typ 573 CafeRomatica, NICR 789 - Typ 573 CafeRomatica, NICR 820 - Typ 709 CafeRomatica, NICR 821 - Typ 709 CafeRomatica, NICR 825 - Typ 709 CafeRomatica, NICR 830 - Typ 691 CafeRomatica, NICR 831 - Typ 691 CafeRomatica, NICR 838 - Typ 692 CafeRomatica, NICR 839 - Typ 692 CafeRomatica, NICR 840 Marrone - Typ 691 CafeRomatica, NICR 841 - Typ 692 CafeRomatica, NICR 842 - Typ 692 CafeRomatica, NICR 845 - Typ 691 CafeRomatica, NICR 848 - Typ 692 CafeRomatica, NICR 850 - Typ 691 CafeRomatica, NICR 855 - Typ 691 CafeRomatica, NICR 858 - Typ 692 CafeRomatica, NICR 859 - Typ 692 CafeRomatica, NICR 877 - Typ 691 CafeRomatica, NICR 960 - Typ 698 CafeRomatica, NICR 970 - Typ 698 CafeRomatica, NICR 1030 - Typ 568 CafeRomatica
Please compare the exact model designation of your coffee machine with the compatibility list above before ordering.
